Conceal C82W
Dual-panel, Dual 8-inch (200mm) Invisible Subwoofer System
Documents & Downloads
- Conceal Series PCB Spec Sheet
- Owner's Manual - CN
- Owner's Manual - DE
- Owner's Manual - ES
- Owner's Manual - FR
- Owner's Manual - JP
- Owner's Manual - KO
- Owner's Manual - PTBR
- Owner's Manual - RU
- C30PCB Quick Specs Document
- C82 Quick Specs Document
- Technical Bulletin - C82W Tuning with Crown CDi 2/300 amplifier
- C82W Tuning Files for Crown CDi 2/300
- Owners Manual (English)
Product Specifications
- Type
- In-Wall/In-Ceiling subwoofer system
- Low Frequency Drivers
- 8-inch (203mm) woofers with 1.5-inch (38mm) voice coil (2 per panel)
- Recommended Amplifier Power
- 60 - 100 WRMS (per panel)
- Impedance
- Selectable 4 Ohm or 16 Ohm (each panel)
- Loudspeaker Sensitivity
- 86 dB/1W/1m measured in-room
- Frequency Response
- 30 Hz - 300 Hz (-6 dB) measured in-room
- Crossover Frequency
- N/A (requires amplifier with HPF and LPF)
- Enclosure Type
- Sealed, with wooden back-box
- Protection
- N/A (requires amplifier with limiter)
- Input Type
- Dual gold-plated spring-loaded binding posts
- Warranty
- 5 Years
- Panel Dimensions
- 30" H x 15-7/8" W x 3-7/8" D (762mm H x 403mm W x 98mm D)
- Cut-out Dimensions
- 30-1/8” H x 16” W (765mm H x 406mm W)
- Mounting Depth
- 3-3/8-inches (86mm)
- Product Weight
- 59.8 lbs (27.1 kg)
- Shipping Weight
- 67.4 lbs (30.6kg)
Conceal C82W

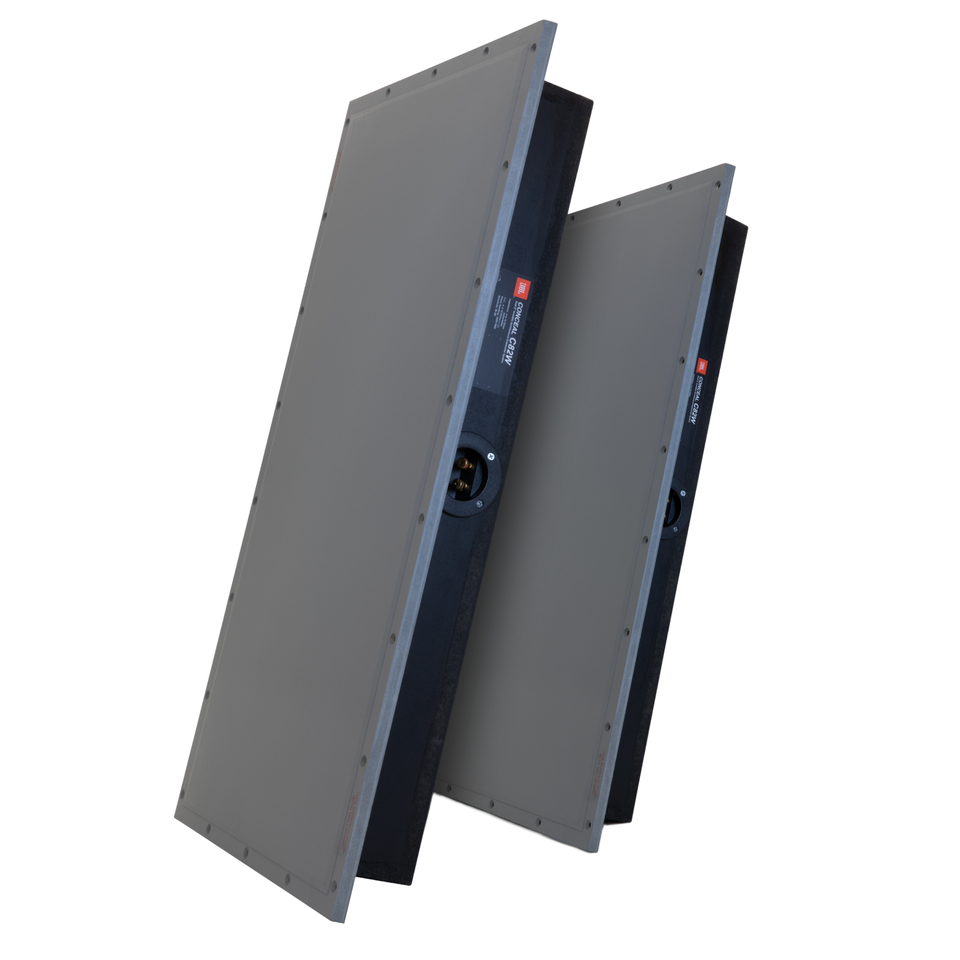

The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
