Conceal C86
8-inch (200mm) 6-element, Dual Panel Invisible Loudspeaker
Documents & Downloads
Product Specifications
- Type
- 3-way In-Wall/In-Ceiling loudspeaker
- Low Frequency Driver
- 8-inch (203mm) woofer with 1.5-inch (38mm) voice coil
- Mid Frequency Driver
- Four 1.18-inch (30mm) voice coil transducers with neodymium magnets
- High Frequency Driver
- 1-inch (25mm) voice coil transducer with neodymium magnet
- Recommended Amplifier Power
- 50 - 200 WRMS
- Impedance
- 4 Ohm
- Loudspeaker Sensitivity
- 84 dB/1W/1m measured in-room
- Frequency Response
- 45 Hz - 20 kHz (-6 dB) measured in-room
- Crossover Frequencies
- 600 Hz; 10 kHz
- Enclosure Type
- Sealed, with wooden back-box
- Protection
- Three independent self-resetting devices (LF, MF and HF)
- Input Type
- Dual gold-plated spring-loaded binding posts
- Warranty
- 5 Years
- Mid-High Frequency Panel Dimensions
- 11-7/8" H x 15 -7/8" W x 3-7/8" D (302mm H x 403mm W x 98mm D)
- MF/HF Panel Cut-out Dimensions
- 12” H x 16” W (305mm H x 406mm W)
- MF/HF Panel Mounting Depth
- 3-3/8-inches (86mm)
- Low Frequency Panel Dimensions
- 22" H x 15-7/8" W x 3-7/8" D (559mm H x 403mm W x 98mm D)
- LF Panel Cut-out Dimensions
- 22-1/8” H x 16” W (562mm H x 406mm W)
- LF Panel Mounting Depth
- 3-3/8-inches (86mm)
- Product Weight (MF/HF Panel)
- 12.9 lbs (5.9kg)
- Product Weight (LF Panel)
- 20.0 lbs (9.1kg)
- Shipping Weight
- 41.5 lbs (18.8kg)

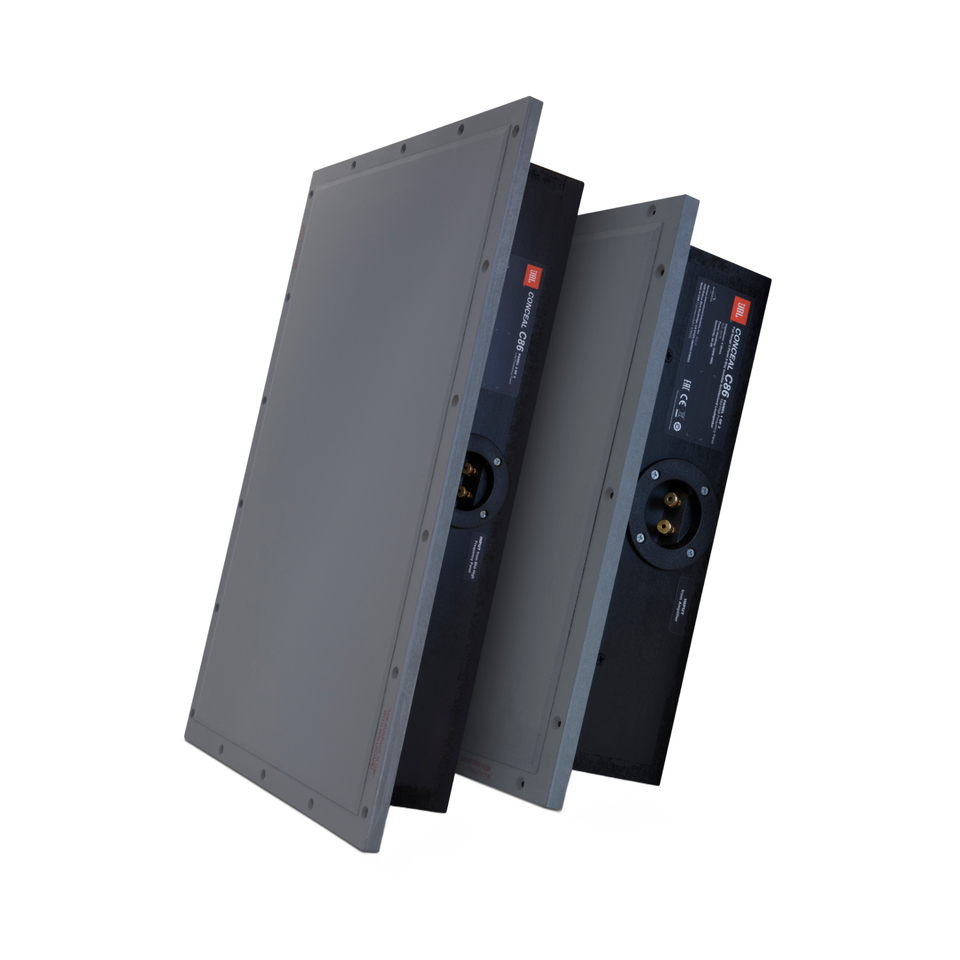

Conceal C86
The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.
