JBL L75ms Music System

Integrated Music System

Documents & Downloads

Quick Start Guide

Other

Product Specifications

General Specifications

Type: Streaming tabletop loudspeaker system

Low Frequency Drivers: Dual 5.25" (130mm) Pure Pulp cone woofers

High Frequency Drivers: Dual 1” (25mm) Aluminum dome tweeters with waveguides

Midrange Driver: 4” (100mm) Pure pulp cone midrange

Amplifier Power: 125W RMS per woofer, 25W RMS per tweeter, 50W RMS for center (350W RMS total)

Sound Controls: Speaker placement compensation, selectable sound-field expander

Wireless Inputs: WiFi streaming, Bluetooth 4.2

Wired Inputs: HDMI ARC, ethernet, phono (MM), 3.5mm AUX

Resolution: Up to 32-bit, 192 kHz

Frequency Response: 45 Hz - 25 kHz (-6 dB)

Maximum SPL: 106 dB @ 1m

Subwoofer Output: 2V RMS with auto-sense/engage HPF

Enclosure: Front-ported tabletop in satin walnut furniture-grade wood veneer

Grille: Black foam Quadrex grille

Dimensions with grille: 8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)

Remote Control Type: BTLE

Product Weight (Each): 35 lbs. (15.9 kg)

Shipping Weight: 44 lbs. (20.0 kg)

Shipping Units of Measure: Each

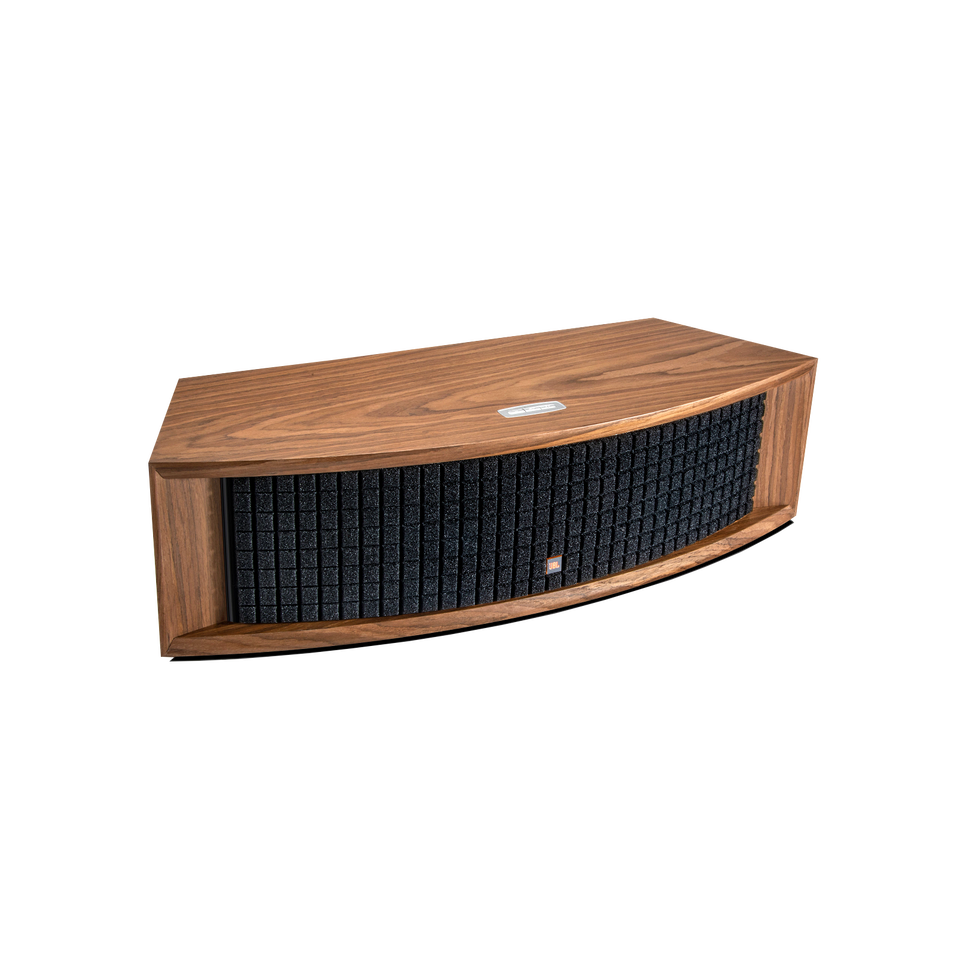

JBL L75ms Music System

The JBL L75ms Music System caters to the enthusiast who seeks an easier way to listen to their music collection without sacrificing acoustic performance. As a modern re-imagining of the traditional Hi-Fi system, the L75ms finds its design inspiration from the JBL Classic Series with which it shares its walnut wood veneer cabinet finish and black Quadrex foam grille. Behind that retro appearance lies thoroughly modern acoustic technology including high-res audio capability and a wealth of wired and wireless connectivity.
